vRack – Private Virtual Local Area Networking
With vRack (virtual rack) technology, your OVHcloud services can be connected, isolated, or spread across one or multiple secure private networks. Using our unique network technology, you can build complex private infrastructures on a global multi-data center scale.
Start by grouping your services, regardless of the number and physical location, in our data center. Next, connect them to a virtual switch within the same private network. Your services can then communicate privately and securely with each other over a dedicated VLAN (virtual local area network). No more worrying about connecting or renting racks in a data center. You have all the services and switches you need with guaranteed delivery, installation, and hardware maintenance.
Furthermore, because your servers communicate securely within your private VLAN, you can make the servers accessible through your private or public network. We physically manage your private network, which means your servers don’t require any software applications or network configurations.
Use Cases
Multiply your VLANs
Deploy up to 4000 private VLANs to isolate your servers, to filter customer access, and secure your data.
A multi-service infrastructure
vRack adapts to the needs of your business. Build your infrastructure using the products and services of OVH -- dedicated servers, public cloud, and hosted private cloud.
High security infrastructure
Using bastion hosts, or similar secure access to your VLANs, to the maximum -- as an extension of your company network or as part of a critical data hosting system.
Multi-data center VLAN
vRack operates amongst OVH data centers. From Europe to Canada, design your private redundant, distributed infrastructure plan.
Features
- Worldwide data center connections
-
With fiber-optic connections deployed and managed using Dense Wavelength Division Multiplexing (DWDM) devices, the OVHcloud network offers a total capacity of 16+ Tbps. Because the links between each data center are doubled, you can easily change route if necessary and benefit from 100 Gbps coherent.
The network enables super-fast inter-data center links:
Roubaix => Beauharnois: 40 ms
Gravelines => Strasbourg: 9 ms
Beauharnois => Newark, NJ: 9.2 ms
Beauhardois => New York City: 9.9 ms
- API accessible
-
Increase your efficiency by using the OVH API to retrieve commands (i.e., code) to automate or authorize certain tasks according to predefined conditions.
- Connectivity and capacity
-
vRack lives on OVHcloud’s guaranteed low-latency network, with throughputs up to 40 Gbps, depending on your plan. OVHcloud supports up to 4,000 VLANs.
- Automatic failover
-
The IP Load Balancing lets you set up a highly available infrastructure based on the master/slave model. This feature — API: BackupState — will automatically migrate your traffic to the slave if the master is found to be faulty.
Taking vRack to Task

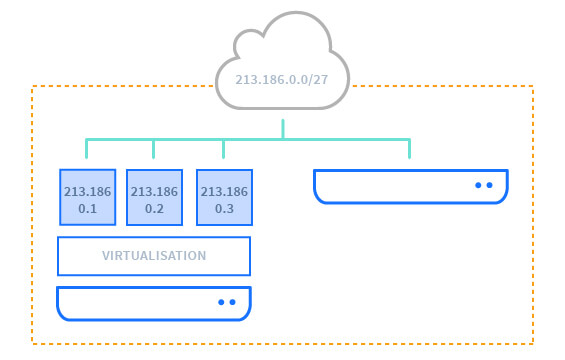

Public IP Routing
Allocate an IP block to a VLAN to make some of the servers or virtual machines in your infrastructure public.

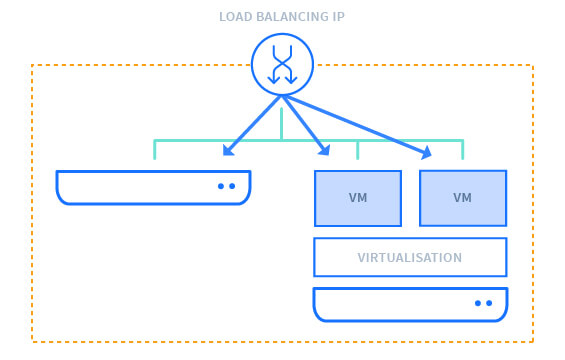

Load Balancing IPs
Easily balance the load between the different services of your VLAN within the vRack.

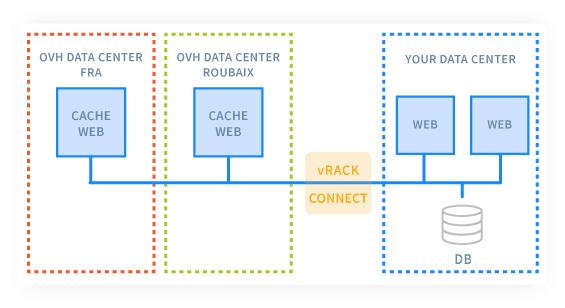

vRack Connect
Directly link your business network to OVHcloud’s data centers using the available PoPs.
Plans
Services
|
Family |
Dedicated Servers: Infrastructure |
Dedicated Servers: High Availability |
Dedicated Servers: Storage |
Dedicated Servers: GPU |
Dedicated Servers: Game |
Hosted Private Cloud: SDDC |
Public Cloud: All |
|---|---|---|---|---|---|---|---|
|
Family |
Dedicated Servers: Infrastructure |
Dedicated Servers: High Availability |
Dedicated Servers: Storage |
Dedicated Servers: GPU |
Dedicated Servers: Game |
Hosted Private Cloud: SDDC |
Public Cloud: All |
|
vRack 10 Mbps |
Included |
- |
- |
- |
- |
- |
- |
|
vRack 1 Gbps |
Premium |
- |
Included |
- |
- |
Included |
Included |
|
vRack 3 Gbps |
- |
Included |
- |
Included |
- |
- |
- |
FAQ
You can build an infrastructure consisting of Dedicated Servers, Hosted Private Cloud and Public Cloud
Yes, you can set up a cross-network VLAN with the Vint Hill, Roubaix, Gravelines, Strasbourg, Bauharnois, Frankfort, London, Sydney, and Singapore data centers.
Yes, you can build an infrastructure integrating one or multiple servers connected to up to 4,000 VLANs.
You can create up to 5 vRacks per customer account.
Use the API to customize the names of your different vRacks or directly in your control panel.
Multicast is tolerated within the limit of 20 packets / seconds / servers.
The limit is based on your server's network card: either 1 Gbps, 10 Gbps, or 40 Gbps. (See table below)
|
|
Europe |
Americas |
APAC |
|
Europe Data Centers |
Up to 10 Gbps |
Up to 10 Gbps |
Up to 1 Gbps |
|
Americas Data Centers |
Up to 10 Gbps |
Up to 10 Gbps |
Up to 1 Gbps |
|
APAC Data Centers |
Up to 1 Gbps |
Up to 1 Gbps |
Up to 1 Gbps |
More Info
Guides
- Coming Soon
